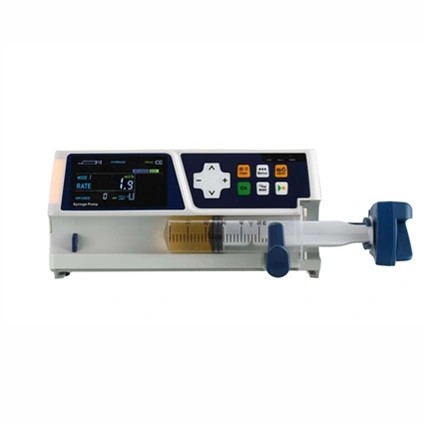

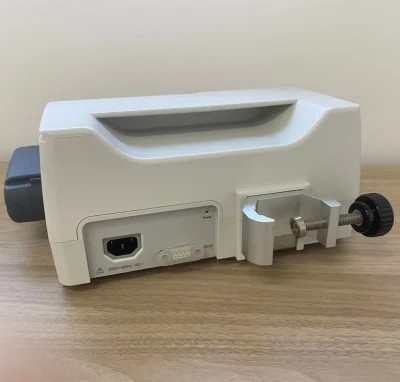

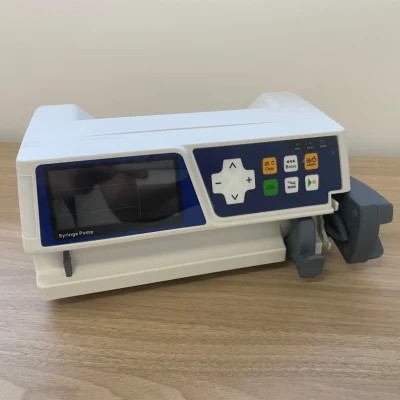

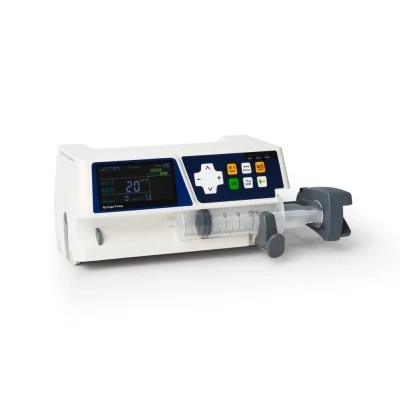

Stackable Syringe Pump

Open system
TFT large screen
Horizontal or vertical install

EMAIL

Product Feature:

  • Three Work Mode: Rate, Time, Dose Mode

  • Manual or Automatic Bolus Function

  • Vertical &Horizontal Mounting Clamp

  • Anti-Bolus System

  • DPS Dynamic Pressure Display

  • KVO and Bolus Function

  • 2000 events stored can be checked and downloaded

  • Large Color TFT display with adjustable brightness


Specification:



PARAMETERSPECIFICATION
Applicable syringes10ml,20ml,30ml,50ml,60ml of any standard
Accuracy+/- 2% with correct calibration
Rate mode50ml(60ml):0.1ml/h-2000.0ml/h (0.1ml/h or 1ml/h step)
30ml:0.1ml/h-1200.0ml/h (0.1ml/h or 1ml/h step)
20ml:0.1ml/h-800.0ml/h (0.1ml/h or 1ml/h step)
10ml:0.1ml/h-400.0ml/h (0.1ml/h or 1ml/h step)

5ml: 0.1~200ml/h (0.1ml/h or 1ml/h step)
(Programmable 0.01ml/h~9999.9ml/h)
Time ModeSOL. VOL:0.1-9999.9ml (0.1ml step)
TIME:00:01-99:59min (1min step)
Dose Mode:Volume:0.1-999.9ml(0.1ml step)
DRUG MASS:0.1-999.9mg 0.1mg step)
DOSE:0.001-9999ug/kg/min(0.001ug/kg/min step)
WEIGHT:0.1-300kg(0.1kg the least step)
Total Volume Range0.1-999.9ml (0.1 ml step)
Sequential modeAvailable (Only for SP3)
KVO Rate0.1~5.0 ml/hProgrammable and adjustable
DPS dynamic pressure          24 levels, 30kPa-160kPa
(Programmable and adjustable)
AlarmsSyringe Holder Loose ,Syringe Plunger DisengagementSyringe Flange Insertion Error ,Syringe Not CalibratedOcclusionSyringe EmptyRate AbnormalBattery EmptyNo BatteryInfusion CompleteSyringe Near EmptyNo ActionBattery Low.
Three levels of alarm volume LOW, MEDIUM or HIGH
Bolus VolumeRange: 1.0~50.0ml(0.1ml step)
InterfaceRS-232
Brightness1~10 levels can be selected
