Open system
TFT large screen
Horizontal or vertical install
Product Feature:
Three Work Modes

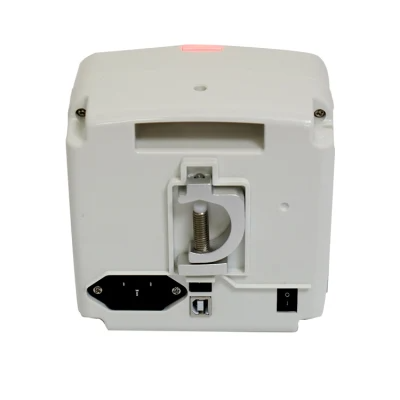

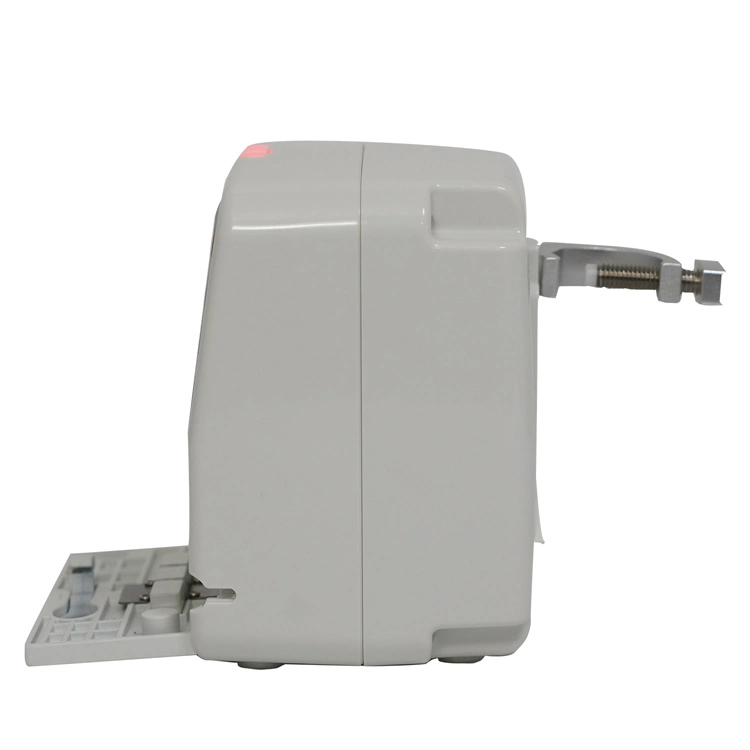

Vertical &Horizontal Mounting Clamp
KVO, purge and Bolus Function

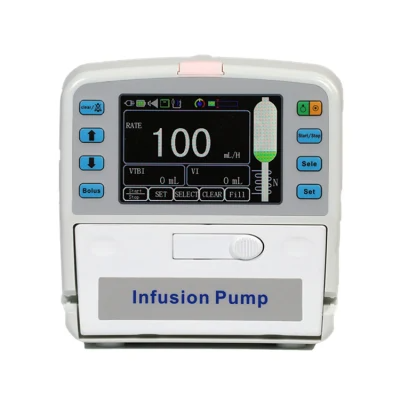

3.5" Color TFT display with adjustable brightness
Specification:
| Infusion mode | Rate mode, Drip mode, Micro mode |
| Infusion set | Any brand of infusion set |
| Infusion accuracy | ±5% |
| Infusion rate range | Normal mode:1~1200ml/h, increment 1 ml/h; Trace mode:0.1-99.9ml/h, increment 0.1ml/h |
| KVO rate | 1-8ml/h |
| Purge/Bolus rate | 300-1200ml/h |
| Volume To Be Infused (VTBI) | 1~9999 ml |
| Air Bubble detection | Ultrasound sensor detection of air bubble |
| Occlusion detection | Occlusion pressure detection adjustable on 3 levels |
| Alarm | Over, Low battery, Air, Occl., AC power failure, Door open, Time waited out, Error, Countdown |
| Displayed information | AC power connection, Power, Volume, Door open, Tube, Occlusion level, Air, Occl., L.batt., Over, Error, Time waited out, Infusion rate, VTBI, Volume infused |
| Power supply | AC 110-240V 50-60HZ |
| Battery | Rechargeable lithium battery, 7.4 V, 2400mAh; Can work continuously for 3.5 hours at the rate of 25ml/h |
| Dimensions | 135x90x135 mm (L×W×H) |
| Weight | ≤1.5Kg |
| Classification | Class II, BF type |
| Waterproof level | IPX3 |
