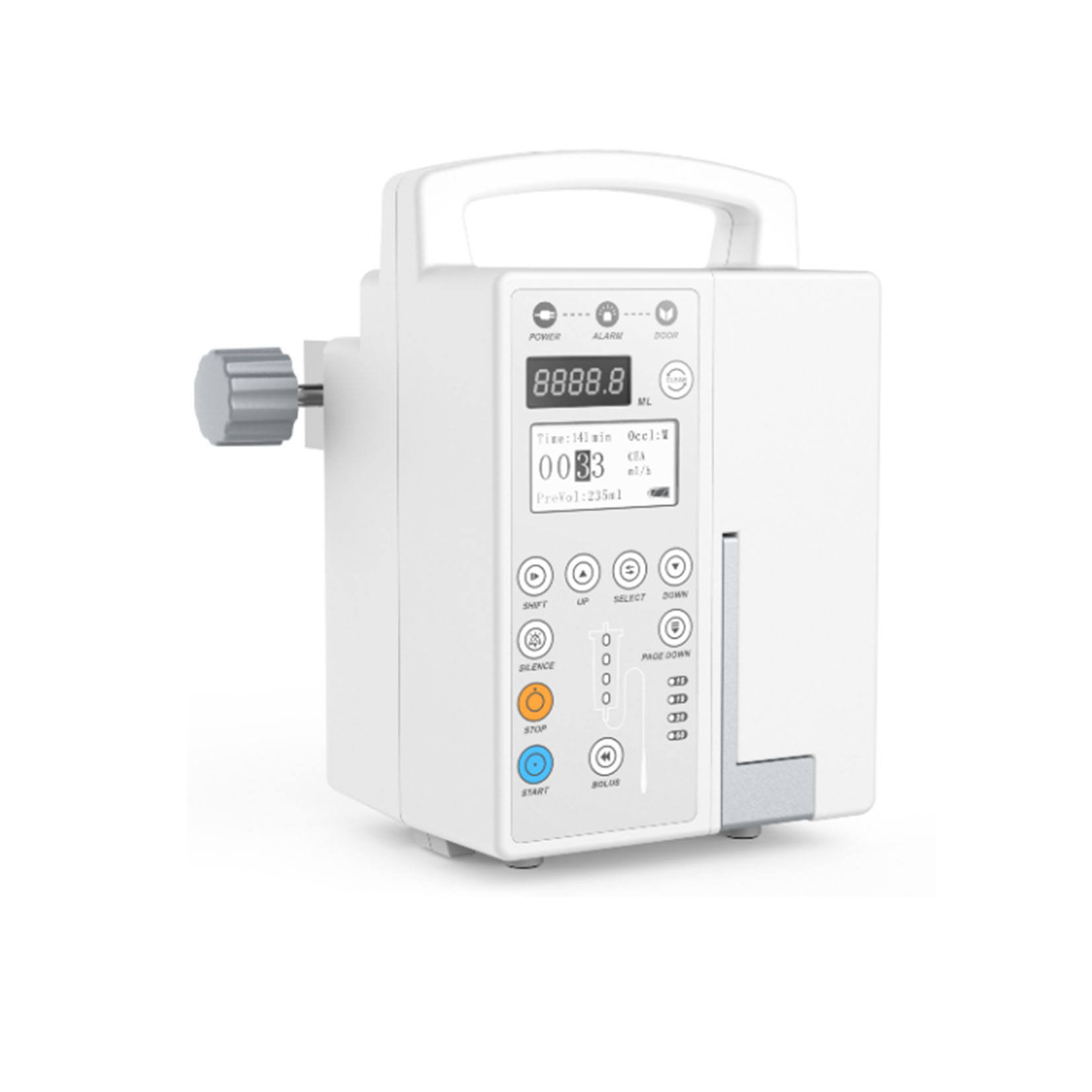

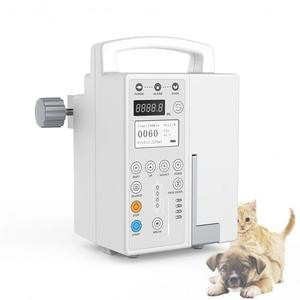

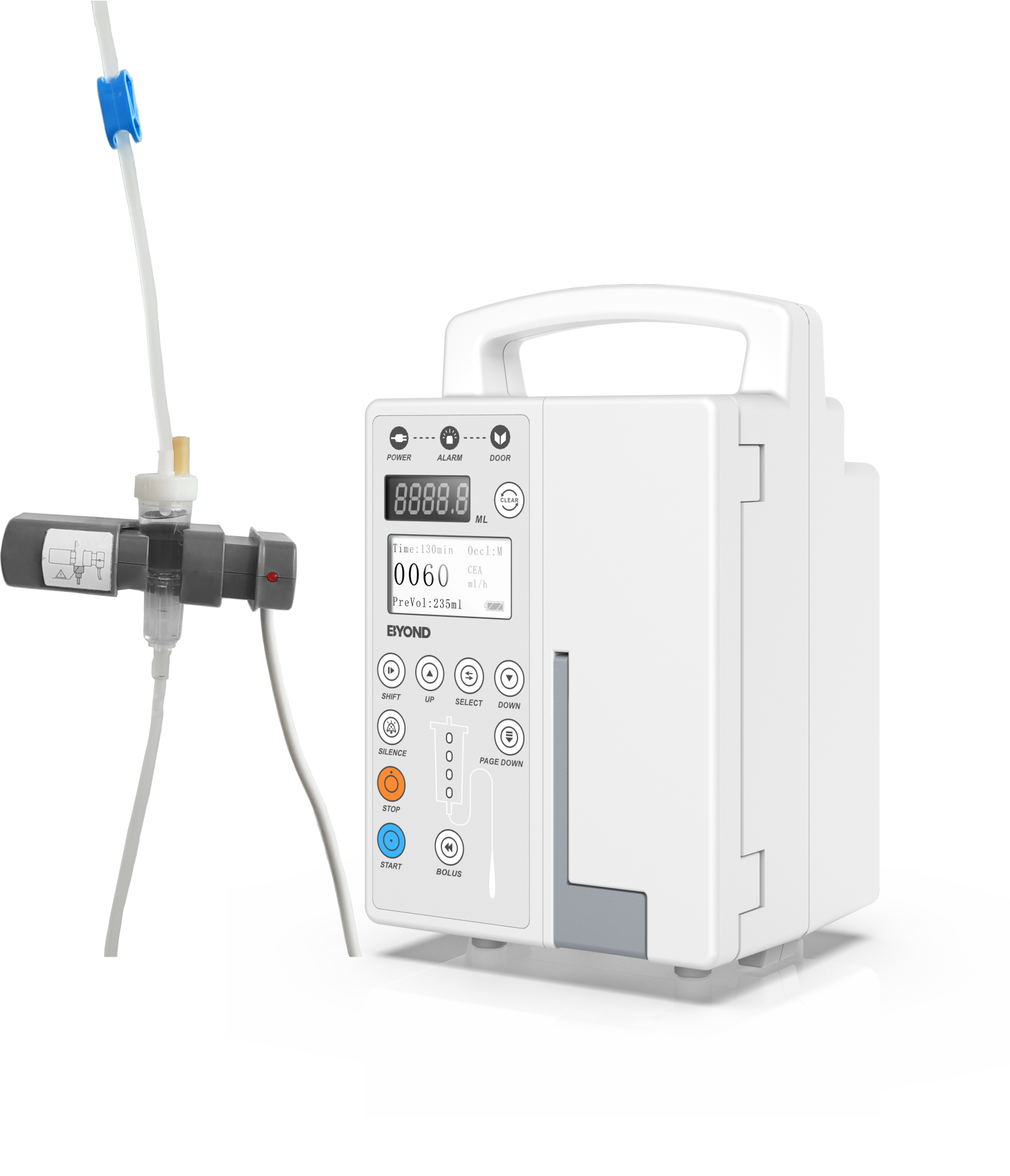

Veterinary Infusion Pump

Open system
Two screen
Unique voice alarm system

Features:
1. HD LCD Display, high capacity words, friendly user interface, dynamically display working status;
2. Audible and visual alarm for occlusion, empty, low battery, end of infusion, door open, wrong setting, etc., which gain patents;
3. Compatible with any brands of infusion sets after correct calibration;
4. Preset solution volume to greatly reduce the workload of nurses;
5. Work mode: ml/h and drop/min can switch freely;
6. Three levels of occlusion: high, middle and low;
7. Purge function;
8. KVO (keep-vein-open) automatically opens as infusion is completed, KVO rate is 3ml/h;
9. Power Source: AC100---240V, 50/60Hz; Internal Battery;
10. Automatically record the settings of last infusion;
11. BYS-820D can have 2000pcs of injection records and it has a drug library.
12. OEM is available and system language can be English, Poland, Latvian, Russian etc.

Specifications:

Model	BEC-820 & BEC-820D
Infusion Rate	1ml/h---1200ml/h (1ml/h step)
Purge Rate	100ml/h---1200ml/h (can be calibrated)
Rate Accuracy	within±5% (after correct calibration)
Volume Limit	0ml---9999ml
Total Infusion Volume	0---9999.9ml
Alarm Pressure	High 800mmHg±200mmHg (106.7kPa±26.7kPa)
	Medium 500mmHg±100mmHg (66.7kPa±13.3kPa)
	Low 300mmHg±100mmHg (40.7kPa±13.3kPa)
Audible and Visible Alarms	End of injection, Occlusion, Door open, Bubbles in the tube, Wrong setting, Low battery, AC power pulled out, etc.
Power Source	100---240Vac, 50/60Hz
	Internal rechargeable Li battery volume≥1,600mAh
	4 hours internal battery backup
Bubble Detector	Ultrasonic wave detector, detection sensitivity ≥25μL
KVO Speed	1ml/h---5ml/h (1ml/h step)
Power Consumption	18VA
Operation Environment	Temperature +5---+40 degree
Operation Environment	Relative Humidity 20---90%
Storage Environment	Temperature -30-----+55 degree
	Humidity ≤95%
	Atmospheric Pressure 50.10KPa---106.0KPa
Infusion Set	Compatible with any brands
Forbidden	Not support blood Infusion
Dimension	140mm(L) x 157mm(W) x 220mm(H)
Net Weight	1.8kg
Package Reference	1pc Carton: 2.8KG, 33cm(L) x 28cm(W) x 26cm(H)
	2pcs Carton: 5.6KG, 52cm(L) x 30cm(W) x 36cm(H)
	3pcs Carton: 8.4KG, 76cm(L) x 30cm(W) x 36cm(H)
