Open system
TFT large screen
Horizontal or vertical install
Product Feature:
Three Work Mode: Rate, Time, Dose Mode
Manual or Automatic Bolus Function

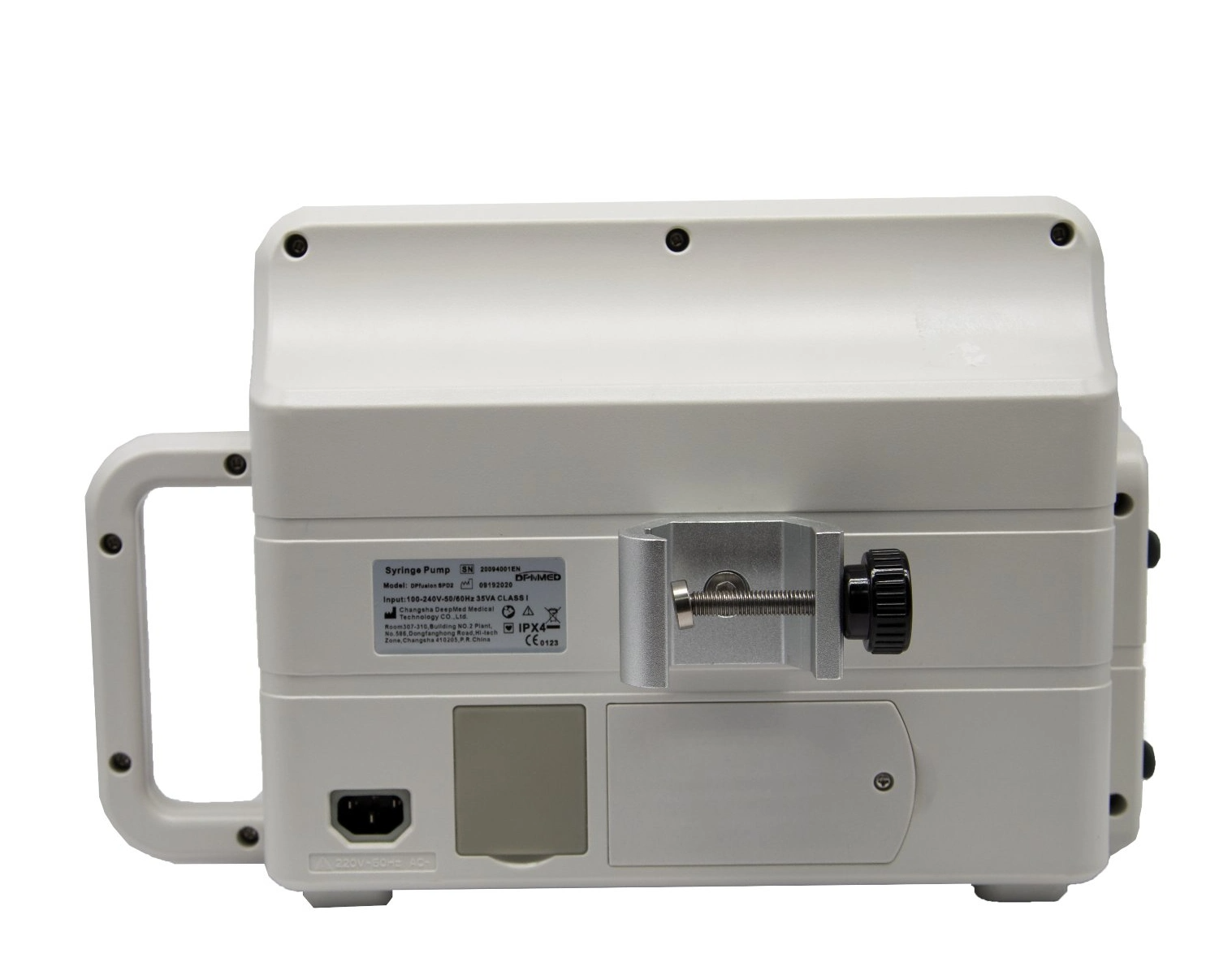

Vertical &Horizontal Mounting Clamp
Anti-Bolus System
DPS Dynamic Pressure Display
KVO and Bolus Function
2000 events stored can be checked and downloaded
Large Color TFT display with adjustable brightness
Specification:
| PARAMETER | SPECIFICATION |
| Applicable syringes | 5ml,10ml,20ml,30ml,50ml,60ml of any standard |
| Accuracy | +/- 2% with correct calibration |
| Rate mode | 50ml(60ml):0.1ml/h-2000.0ml/h (0.1ml/h or 1ml/h step) 30ml:0.1ml/h-1200.0ml/h (0.1ml/h or 1ml/h step) 20ml:0.1ml/h-800.0ml/h (0.1ml/h or 1ml/h step) 10ml:0.1ml/h-400.0ml/h (0.1ml/h or 1ml/h step) 5ml: 0.1~200ml/h (0.1ml/h or 1ml/h step) (Programmable 0.01ml/h~9999.9ml/h) |
| Time Mode | SOL. VOL:0.1-9999.9ml (0.1ml step) TIME:00:01-99:59min (1min step) |
| Dose Mode: | Volume:0.1-999.9ml(0.1ml step) DRUG MASS:0.1-999.9mg 0.1mg step) DOSE:0.001-9999ug/kg/min(0.001ug/kg/min step) WEIGHT:0.1-300kg(0.1kg the least step) |
| Total Volume Range | 0.1-999.9ml (0.1 ml step) |
| Drug library Mode | 10 categories of drugs, amounts to 2000 kinds of drug names, 17kinds of dose units, such as ug/kg/min, mg/kg/min,etc. Makes drug dispensing more convenient and safer. (Available for SP3 only) |
| Sequential mode | Available (Only for SP3) |
| KVO Rate | 0.1~5.0 ml/h, Programmable and adjustable |
| DPS dynamic pressure | 24 levels, 30kPa-160kPa (Programmable and adjustable) |
| Alarms | Syringe Holder Loose ,Syringe Plunger Disengagement, Syringe Flange Insertion Error ,Syringe Not Calibrated, Occlusion, Syringe Empty, Rate Abnormal, Battery Empty, No Battery, Infusion Complete, Syringe Near Empty, No Action, Battery Low. Three levels of alarm volume LOW, MEDIUM or HIGH |
| Bolus Volume | Range: 1.0~50.0ml, (0.1ml step) |
| Interface | RS-232 |
| Brightness | 1~10 levels can be selected |
