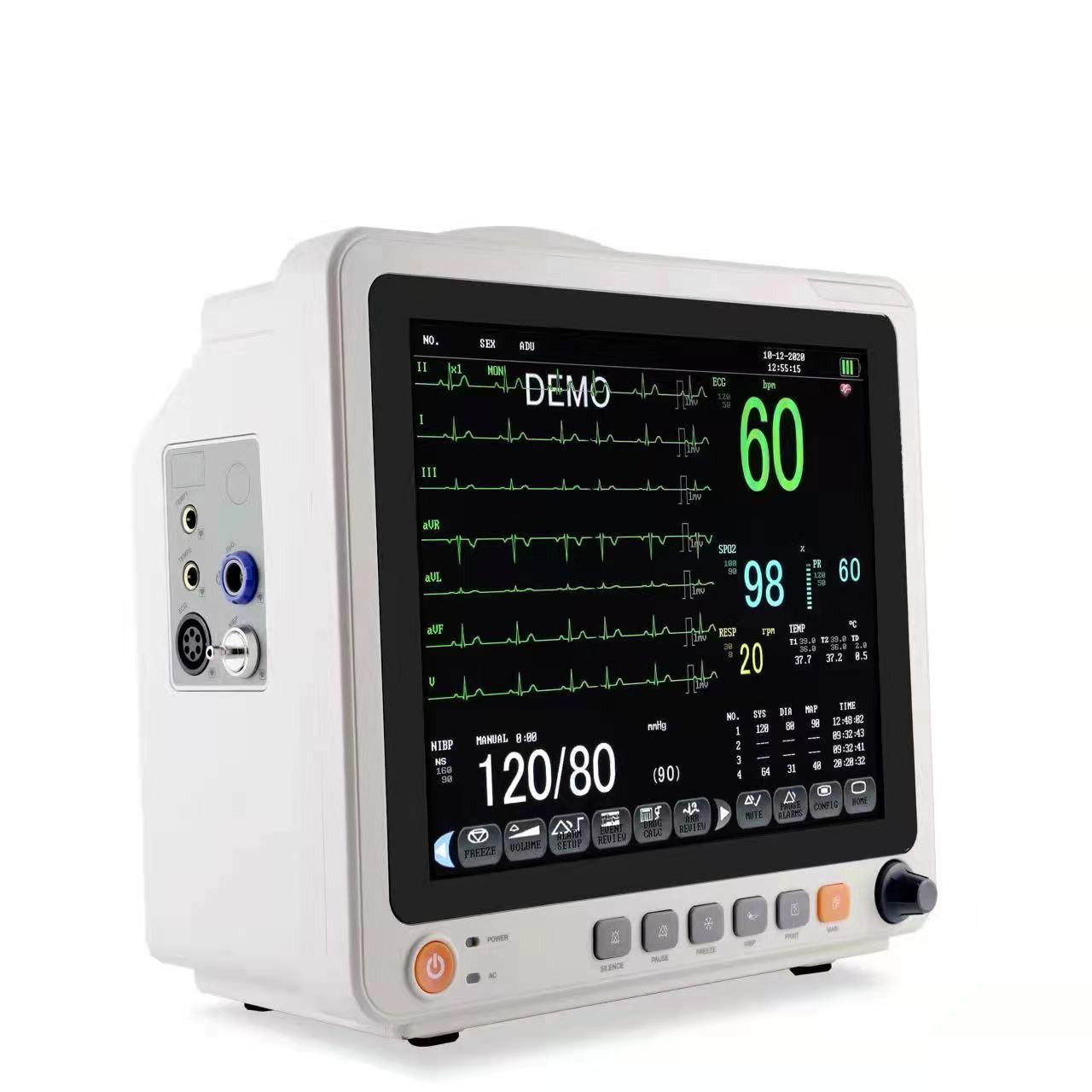

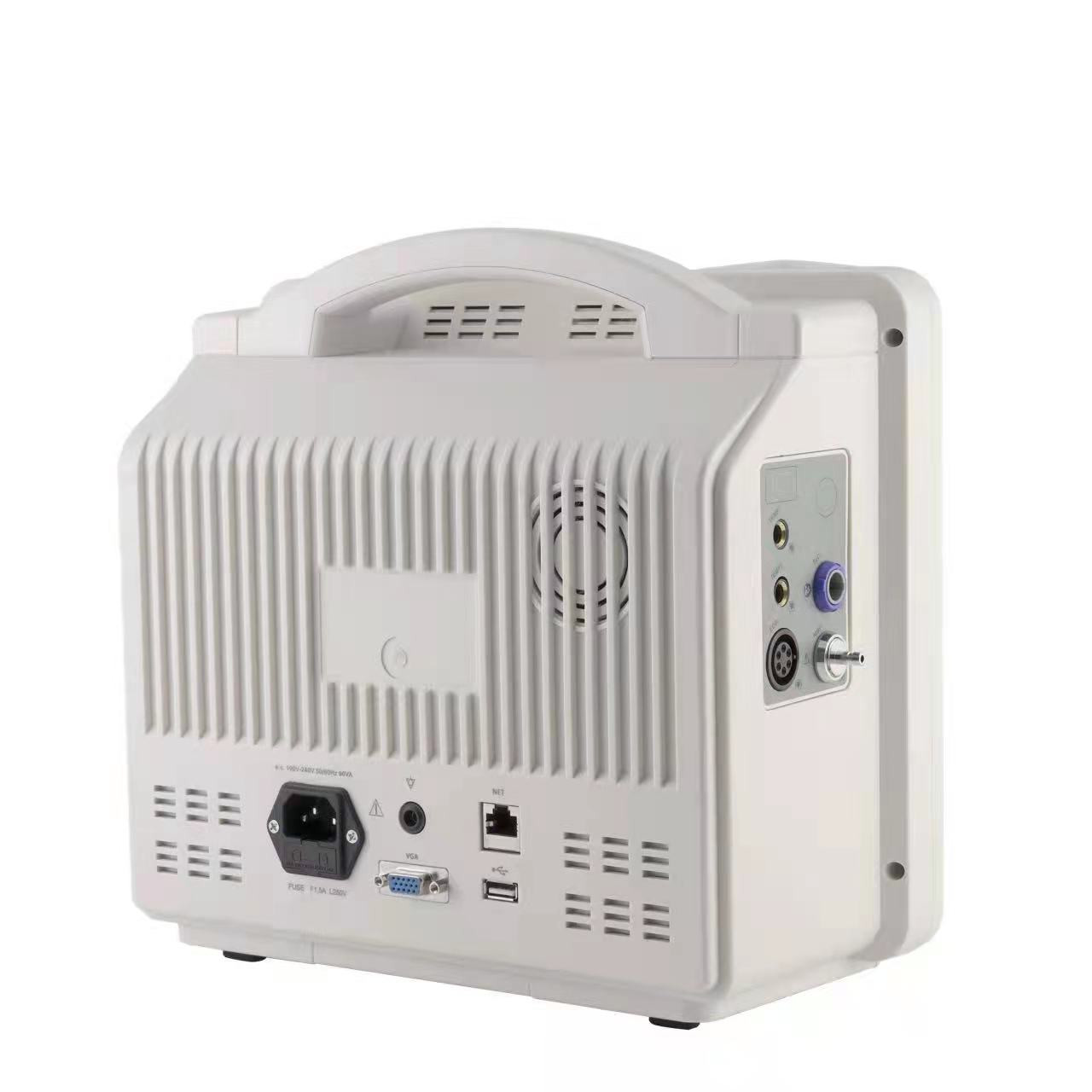

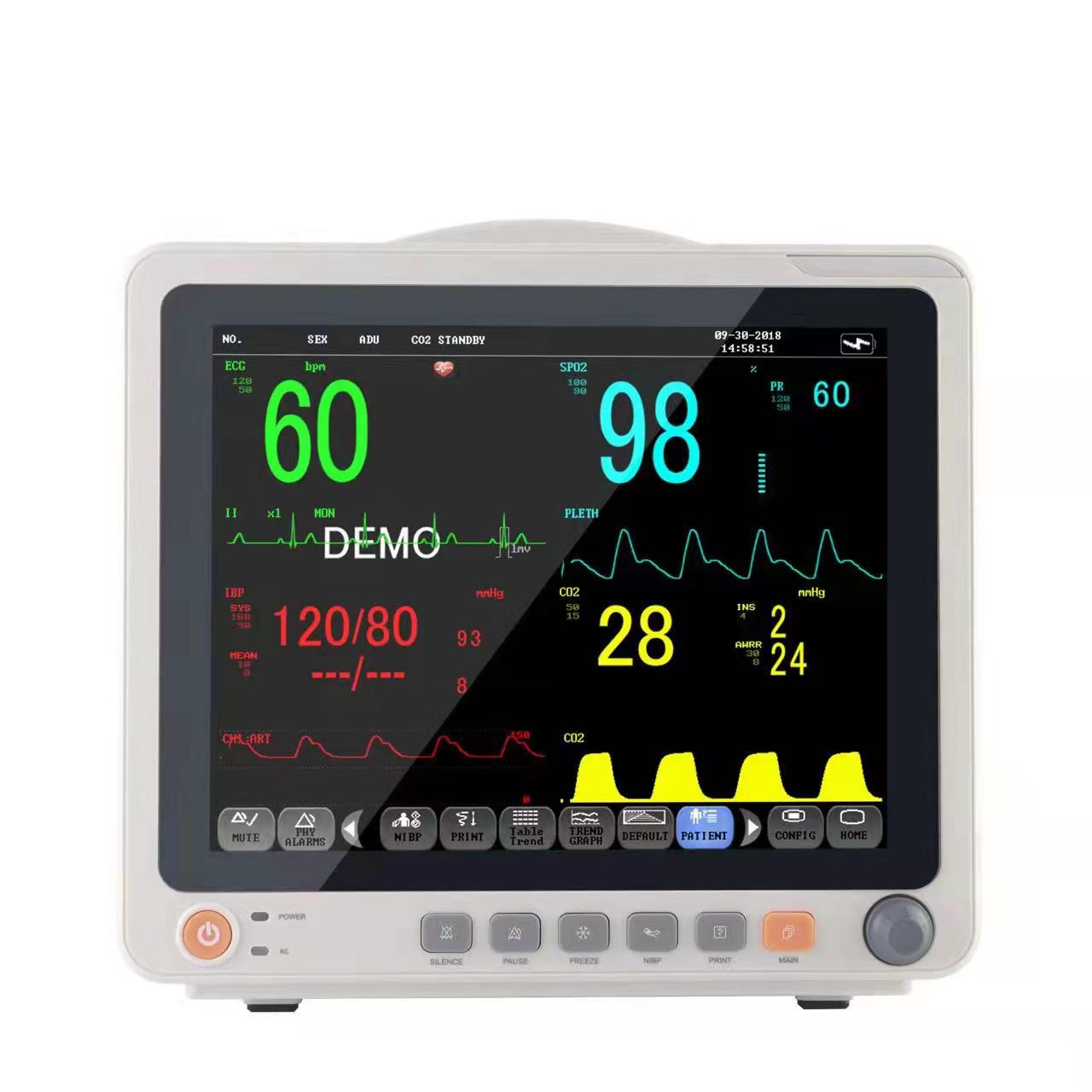

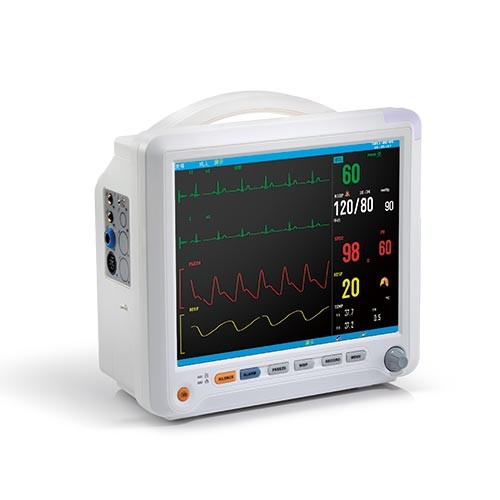

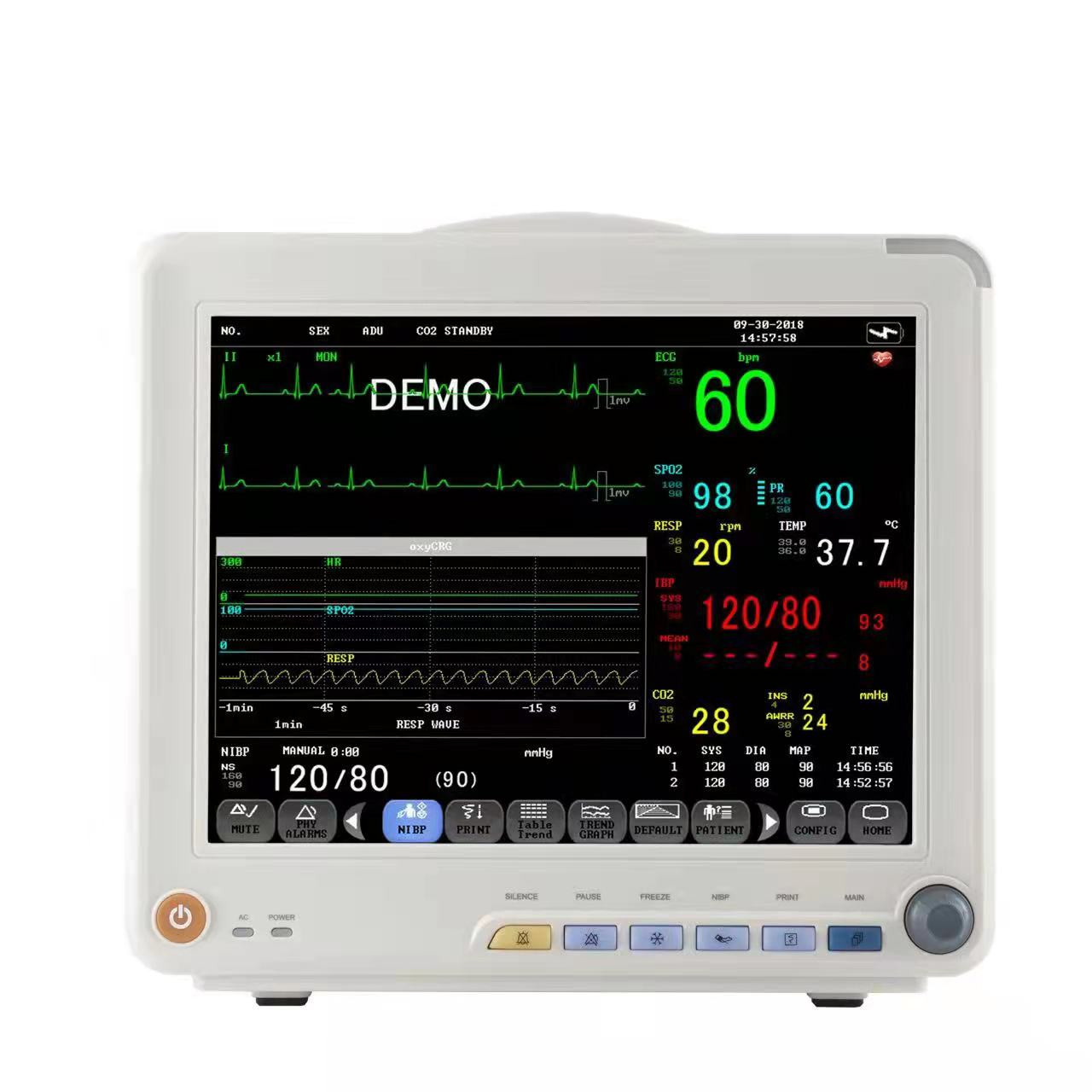

Multi-parameter Patient Monitor

Product Features:

• Touch-screen for easy operation

• 12.1 or 15" inch high resolution color TFT display

• USB interfaces support easy software upgrade and data transfer

• Compatible with Central Monitoring System (CMS)

• Three Working Modes: Monitoring, Surgery and Diagnosis.

• Simple and friendly operating display interface.

• Multi-display modes suitable for different applications: Standard Interface, Large font, ECG
  Standard Full Display, OXY , Trend Table, BP Trend.

• Built-in high capacity battery up to 3 hours of continuous work

• VGA output for external display

Specification:

• ECG
  Lead Mode: 5 Leads (I,"1.11I,AVR,AVLAVF, )
  Gain: 2.5mm/mV, 5.0mmlmV, 10mm/mV, 20mm/mv

  Heart Rate: 15-300


  BPM(Adult): 15-350 BPM(Neonatal)

  Resolution: 1 BPM
  Accuracy:±1%
  Sensitivity >200 uV(Peak to peak)
  ST measurement range: -2.0~+2.0 mv
  Accuracy: -0.8mV~+0.8mV: +0.02mV or ±10%, which is greater
  Other Range: unspecified
  Sweep speed: 12.5 mm/s, 25mm/s,50mm/sBandwidth:
  Diagnostic: 0.05~130 HzMonitor: 0.5~40HzSurgery: 1~20Hz

• NIBP
  Method: Oscillometry
  Measure mode: Manual, Auto,STATUnit: mmHg, kPa
  Measure and alam range:
  Adult Mode: SYS 40 ~280 mmHg; DIA10~225 mmHg; MEAN 20~240 mmHg;

  Pediatric Mode: SYS 40~ 220 mmHg; DIA10~160 mmHg; MEAN 20~170 mmHg;

      Neonatal Mode: SYS 40~135 mmHg; DILA10～100 mmHg; MEAN 20 ~110 mmHg;

      Resolution: 1mmHg
      Accuracy: 5mmHg

• TEMP
  Measure and Alarm Range: 0~ 50 C
  Resolution: 0.1C
  Accuracy:. +0.1C

• RESP
  Method: Impedance between RA-LL or RALA
  Measurement Range:
  Adult: 10~ 120 BPM
  Neonatal/ Pediatric: 7 ~ 150 BPM
  Resolution: 1 BPM
  Accuracy: +2 BPM
